Autopsy Table
Product Adavantage
- Protects personnel, environment, and samples through advanced HEPA-filtered airflow.
- Reduces contamination risks during critical lab procedures.
- Prevents the spread of infectious aerosols within the working space.
- Maintains a sterile working environment for accurate and reliable results.
- Enhances lab safety by ensuring controlled airflow and proper containment.
- Energy-efficient and low-noise design ensures comfortable long-term use.
- Complies with international biosafety standards, promoting safe laboratory practices.

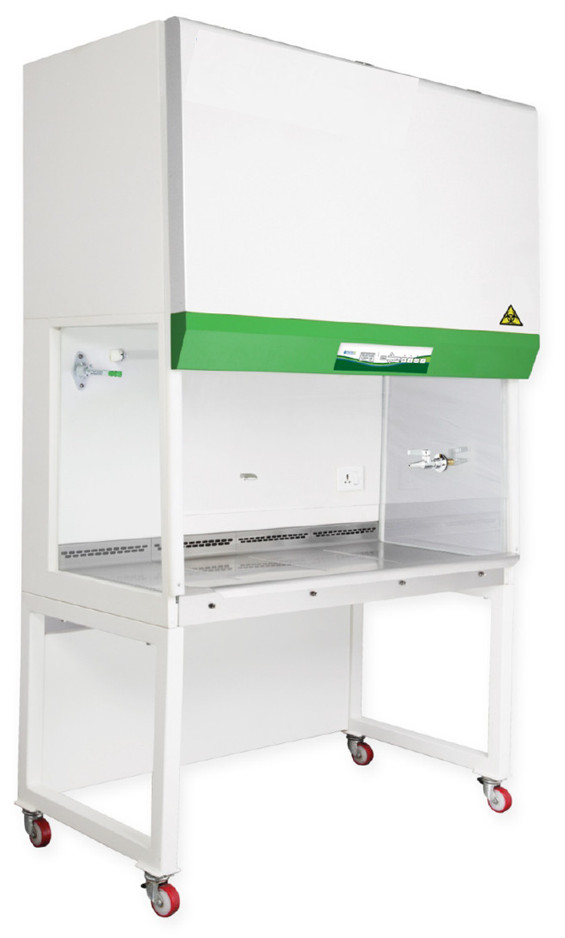

A Biological Safety Cabinet (BSC) is a specially designed enclosed workspace that provides a clean and safe environment for handling infectious or hazardous biological materials. It protects the operator, the environment, and the samples by using HEPA-filtered airflow and controlled ventilation.
Widely used in laboratories, hospitals, research centers, and pharmaceutical units, a BSC helps maintain contamination-free working conditions while ensuring compliance with biosafety standards.
Product Uses
Biological Safety Cabinet is used for:
- Handling infectious samples such as bacteria, viruses, and fungi.
- Preparing sterile cultures for microbiology, cell culture, and molecular biology.
- Processing medical and clinical specimens safely in diagnostic labs.
- Protecting sensitive products from environmental contamination during research and production.
- Safe handling of hazardous aerosols generated during mixing, pipetting, or centrifugation.
| Model / Specification | HYZONE-2003IIA2-E | HYZONE-2004IIA2-E | HYZONE-2003IIA2-EX | HYZONE-2004IIA2-EX |
|---|---|---|---|---|
| Material | Work Zone: SS304 stainless steel. Main Body: Cold-rolled steel with anti-bacteria powder coating (EXP series). Main Body: SS304 stainless steel (EXS series) | Work Zone: SS304 stainless steel. Main Body: Cold-rolled steel with anti-bacteria powder coating (EXP series). Main Body: SS304 stainless steel (EXS series) | Work Zone: SS304 stainless steel. Main Body: Cold-rolled steel with anti-bacteria powder coating (EXP series). Main Body: SS304 stainless steel (EXS series) | Work Zone: SS304 stainless steel. Main Body: Cold-rolled steel with anti-bacteria powder coating (EXP series). Main Body: SS304 stainless steel (EXS series) |
| External Size W*D*H mm | 1035 x 800 x 2181 | 1340 x 800 x 2181 | 1035 x 800 x 2181 | 1340 x 800 x 2181 |
| Internal Size W*D*H mm | 982 x 563 x 670 | 1270 x 563 x 670 | 982 x 563 x 670 | 1270 x 563 x 670 |
| Tested Opening | Safety height 200 mm (8″). Can be customized to 10 inches. | Safety height 200 mm (8″). Can be customized to 10 inches. | Safety height 200 mm (8″). Can be customized to 10 inches. | Safety height 200 mm (8″). Can be customized to 10 inches. |
| Max Opening | 460 mm (can be customized) | 460 mm (can be customized) | 460 mm (can be customized) | 460 mm (can be customized) |
| Inflow Velocity | 0.53 ± 0.025 m/s | 0.53 ± 0.025 m/s | 0.45 ± 0.025 m/s | 0.45 ± 0.025 m/s |
| Downflow Velocity | 0.33 ± 0.025 m/s | 0.33 ± 0.025 m/s | 0.30 ± 0.025 m/s | 0.30 ± 0.025 m/s |
| HEPA Filter | Two HEPA filters, 99.997% efficiency at 0.3 µm; filter life indicator; as per H14 and EN1822. Provides FED STD 209E class 1 (or ISO14644.1 class 3). | Two HEPA filters, 99.997% efficiency at 0.3 µm; filter life indicator; as per H14 and EN1822. Provides FED STD 209E class 1 (or ISO14644.1 class 3). | Three HEPA filters, 99.997% efficiency at 0.3 µm; filter life indicator; as per H14 and EN1822. Provides FED STD 209E class 1 (or ISO14644.1 class 3). | Three HEPA filters, 99.997% efficiency at 0.3 µm; filter life indicator; as per H14 and EN1822. Provides FED STD 209E class 1 (or ISO14644.1 class 3). |
| Blower | 1 x Reverse centrifugal AC Blower | 1 x Reverse centrifugal AC Blower | 2 x Reverse centrifugal AC Blower | 2 x Reverse centrifugal AC Blower |
| Front Window | Manual tempered glass ≥ 6 mm. Anti UV | Manual tempered glass ≥ 6 mm. Anti UV | Manual tempered glass ≥ 6 mm. Anti UV | Manual tempered glass ≥ 6 mm. Anti UV |
| Noise | ≤ 62 dB | ≤ 62 dB | ≤ 62 dB | ≤ 62 dB |
| UV Lamp | 30W * 1 | 30W * 1 | 30W * 1 | 30W * 1 |
| LED Lamp | 12W * 2 (≥1200 Lux illumination) | 14W * 2 (≥1200 Lux illumination) | 12W * 2 (≥1200 Lux illumination) | 14W * 2 (≥1200 Lux illumination) |
| Consumption | 450 W | 550 W | 550 W | 650 W |
| Waterproof Socket | Two waterproof sockets. Total load of two sockets: 500W. | Two waterproof sockets. Total load of two sockets: 500W. | Two waterproof sockets. Total load of two sockets: 500W. | Two waterproof sockets. Total load of two sockets: 500W. |
| Display | LCD display for various values: date, time, inflow velocity and filter life. | LCD display for various values: date, time, inflow velocity and filter life. | LCD display for various values: date, time, inflow & downflow velocity, UV and filter life. | LCD display for various values: date, time, inflow & downflow velocity, UV and filter life. |
| Control System | Digital microprocessor control system for easy operation. | |||
| Airflow System | 70% air recirculation, 30% air exhaust. | |||
| Visual & Audio Alarm | Intelligent alarming system for filter replacement, window over height, abnormal air flow velocity, fan turn-off or door opening; alerts for filter and UV end-of-life. | |||
| Work Surface Height | 770 mm (can be customized) | |||
| Caster | Foot master caster | |||
| Power Supply | AC 220V, 50 Hz | |||
| Standard Accessory | LED lamp 2 pcs, UV lamp 2 pcs, base stand, drain valve, waterproof sockets 2 pcs, AC fan, HEPA filters. | |||
| Optional Accessory | Water and gas tap (optional). | |||
| Gross Weight (kg) | 282 | 316 | 282 | 316 |
| Certification | ISO9001 / ISO13485 / CE / Designed and tested as per EN12469, IEC 61010. | |||
