Deep freezer
Product Adavantage
- Protects personnel, environment, and samples through advanced HEPA-filtered airflow.
- Reduces contamination risks during critical lab procedures.
- Prevents the spread of infectious aerosols within the working space.
- Maintains a sterile working environment for accurate and reliable results.
- Enhances lab safety by ensuring controlled airflow and proper containment.
- Energy-efficient and low-noise design ensures comfortable long-term use.
- Complies with international biosafety standards, promoting safe laboratory practices.

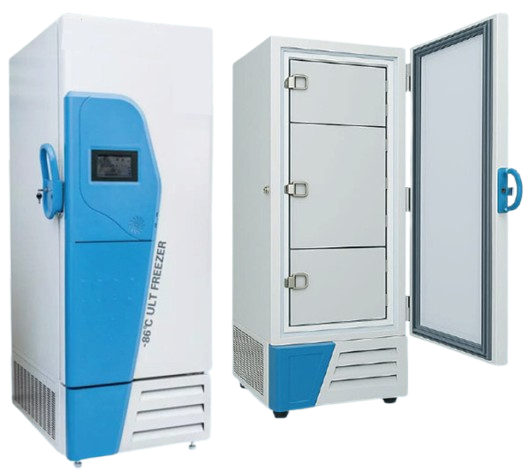

An Ultra Low Temperature Freezer (ULT Freezer) is a highly specialized refrigeration system designed to maintain extremely low temperatures, typically between –40°C to –86°C. These freezers are essential for laboratories, hospitals, research institutes, biotechnology companies, pharmaceutical production units, and blood banks where long-term preservation of sensitive biological samples is critical.
Built with advanced insulation, power-efficient compressors, and microprocessor-based controllers, ULT freezers ensure maximum temperature stability and uniformity. Their robust construction, alarm features, and safety systems make them one of the most reliable cold storage solutions for mission-critical applications.
Uses of Ultra Low Temperature Freezers
Ultra Low Temperature Freezers Cabinet is used for:
- Handling infectious samples such as bacteria, viruses, and fungi.
- Preparing sterile cultures for microbiology, cell culture, and molecular biology.
- Processing medical and clinical specimens safely in diagnostic labs.
- Protecting sensitive products from environmental contamination during research and production.
- Safe handling of hazardous aerosols generated during mixing, pipetting, or centrifugation.
| Model | VCM-86L570TBS | VCM-86L710TBS | VCM-86L940TBS |
|---|---|---|---|
| Technical Data | Cabinet Type Upright | Upright | Upright |
| Climate Class SN | SN | SN | |
| Cooling Type Direct Cooling | Direct Cooling | Direct Cooling | |
| Defrost Mode Manual Refrigerant HC-R600a/R1150/R14 Sound Level: 46 dB | Manual HC-R600a/R1150/R14 46 dB | Manual HC-R600a/R1150/R14 46 dB | |
| Performance | Cooling Performance -86°C | -86°C | -86°C |
| Temp Range -40°C to -86°C | -40°C to -86°C | -40°C to -86°C | |
| Control | Controller Microprocessor | Microprocessor | Microprocessor |
| Display 7 inch Touch Screen HMI | 7 inch Touch Screen HMI | 7 inch Touch Screen HMI | |
| Electrical Data | Power Supply 230V / 50Hz | 230V / 50Hz | 230V / 50Hz |
| Electrical Current (A) 7 | 7 | 8 | |
| Power Consumption (KWh/24H) 10.5 | 11.5 | 13.2 | |
| Power (W) 1200 | 1200 | 1300 | |
| Capacity | 570L / 20.1 Cu. Ft. | 710L / 25.0 Cu. Ft. | 940L / 33.3 Cu. Ft. |
| Construction | Internal: SS 304 | SS 304 | SS 304 |
| External: SS 304 / CRCA Powder coated | SS 304 / CRCA | SS 304 / CRCA | |
| Net/Gross Weight 317/350 kg | 359/395 kg | 427/459 kg | |
| Interior Dimensions 595*725*1310 mm | 765*725*1310 mm | 1025*730*1265 mm | |
| Accessories | SS304 Shelf, RS485, USB Extra Shelf: 3 | SS304 Shelf, RS485, USB Extra Shelf: 3 | Optional Accessories |
| Certification | ISO 9001, ISO 13485, IAF Body, NABL, CE with IEC Test, WHO-GMP, ISO 14001, ISO 40001 ROHS | ||
