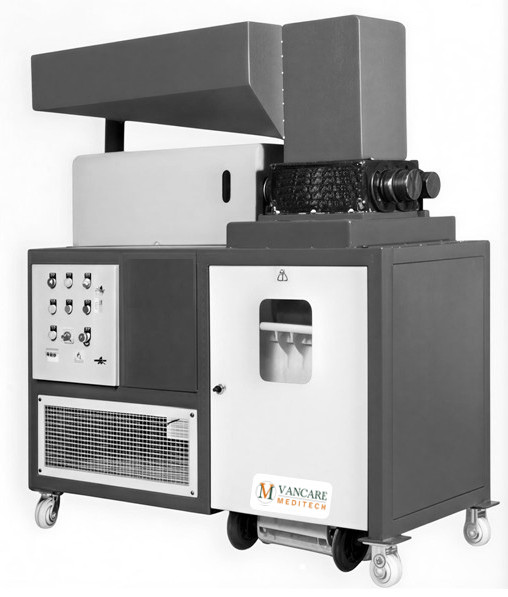

Two Shaft Waste Shredder
LM Series
Advantages of Two-Shaft Shredders
- High Shredding Efficiency: Delivers superior shredding performance with minimal electrical consumption.
- Low Noise Operation: Runs at a low cutting speed, ensuring reduced noise levels while maintaining high output.
- Easily Replaceable Blades: Equipped with hardened steel cutting discs that can be replaced effortlessly.
- Durable Hexagonal Shaft: Features a hexagonal cutter shaft securely fitted with replaceable cutting discs and spacers.
- Optimized Cutter Design: Application-oriented cutter configuration ensures maximum shredding efficiency.
- Built-In Safety Features: Includes overload protection and short-circuit safety mechanisms.
- Sealed Bearing Housing: Specially designed seals prevent liquid infiltration into the bearings for longer service life.
- Automatic Reverse Function: The auto-reversal mechanism activates in case of shaft jam to protect the system.
- Heavy-Duty Gearbox Drive: The rotary cutter shaft is powered by a robust gearbox designed to handle heavy shock loads.
The VanCare Two Shaft Shredder delivers high output with low power use, featuring durable replaceable cutters, low-noise operation, and advanced safety protections. Its robust gearbox, sealed bearings, and automatic reverse function ensure smooth, reliable shredding performance for various waste types with minimal maintenance and maximum efficiency.
Â
Product UsesÂ
This waste shredder is used for:
Shredding plastic waste for recycling
Cutting e-waste like wires and small gadgets
Reducing municipal and industrial waste size
Shredding tyres and rubber materials
Processing paper, cartons, and packaging waste
Â
Â
| MODEL | LM Series | VCM 90 | VCM 90S | VCM 900 | VCM 900S | VCM 909 | VCM 990 |
|---|---|---|---|---|---|---|---|
| Shredding Chamber Width | mm | 270 | 270 | 270 | 270 | 360 | 360 |
| Shredding Chamber Length | mm | 304 | 304 | 510 | 500 | 625 | 750 |
| Shredding Capacity | Kg / hour | 100 – 150 | 100 – 150 | 200 – 250 | 200 – 280 | 350 – 400 | 800 – 1000 |
| Rotary Cutter Thickness | mm | 10 / 15 | 10 / 15 | 10 / 15 | 15 / 25 | 25 / 30 | 25 / 30 |
| Electrical Motor | HP | 3.0 | 5.0 | 7.5 | 7.5 | 5.0 x 2 | 7.5 x 2 |
| Machine Length | mm | 1700 | 1700 | 1900 | 1900 | 2250 | 2450 |
| Machine Width | mm | 500 | 500 | 600 | 600 | 750 | 750 |
| Machine Height | mm | 1500 | 1500 | 1650 | 1650 | 2000 | 2500 |
| Machine Weight | Kgs | 350 | 350 | 500 | 500 | 750 | 1200 |
| Electrical Control Panel | Electrical controls panel with indicating lamps, push buttons, overload cut off relay, MCB. PLC Automation, AC Drive will be supplied at additional cost. | ||||||
| Additional Accessories | Tilt or Flat Belt conveyor for loading/unloading waste, Screw conveyor, Hydraulic/electric waste bin loader, Operator platform. | ||||||
