Biomedical Waste Shredding Machine
LM Series
Load waste into machine

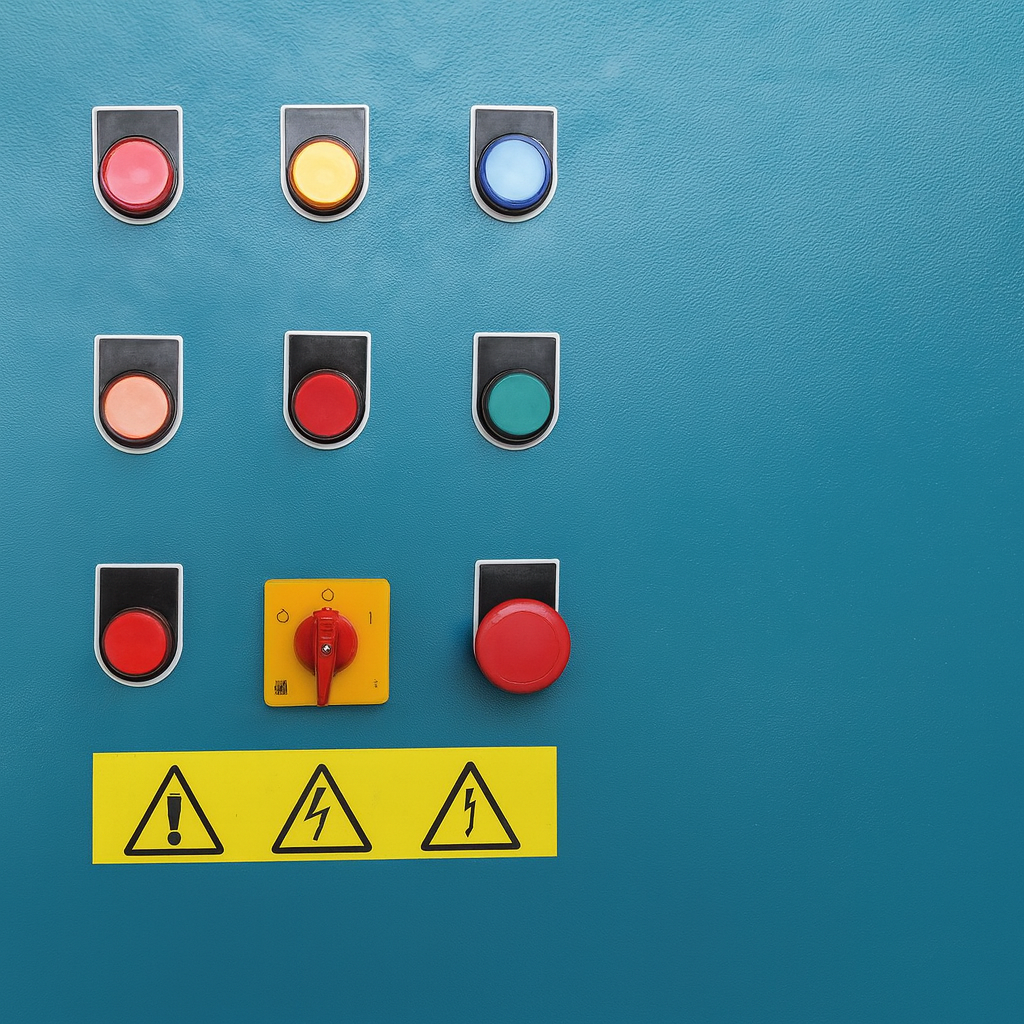

Press Motor ON push button
Switch off Motor & take out
shredded waste collected in bin.

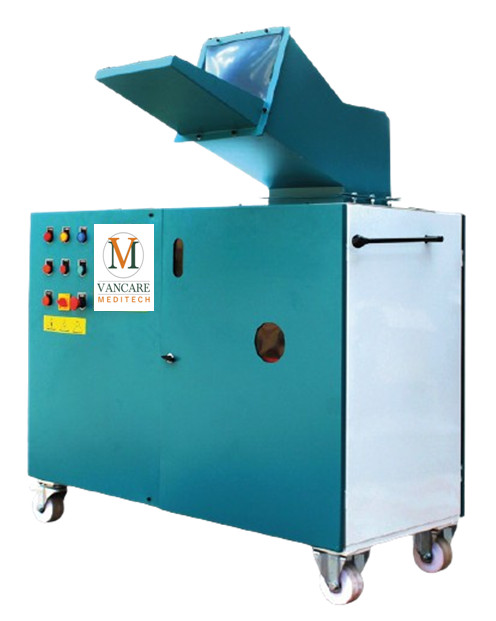

The VanCare Biomedical Waste Shredder Machine safely destroys biomedical waste by cutting it into unrecognizable pieces, preventing reuse and ensuring safe disposal. Its research-backed, cost-effective design handles both dry and wet waste using advanced crocodile-bite technology with V-shaped cutters and rotary discs for efficient, jam-free shredding.
Salient Features of Shrine Shredder Machine
- A low-speed geared motor reduces noise during shredding.
- Advanced single-shaft technology ensures low energy consumption.
- Designed for minimal maintenance.
- Suitable for shredding both dry and wet waste.
- Auto-reverse function activates during overload or cutter jamming.
- Equipped with overload and short-circuit protection.
- The door-limit switch stops cutter rotation when the loading door is open.
- Powder-coated enclosure prevents waste spillage and enhances operator safety.
- Includes a shredder waste collection bin/trolley.
- Fitted with wheels for easy machine movement.
| MODEL VANCARE | VCM 09 | VCM 90 | VCM 900 | VCM 909 | VCM 990 |
|---|---|---|---|---|---|
| Shredding capacity Kgs per hour | 7 | 25 | 50 | 100 | 200 |
| Shredding Chamber Size (L x W) mm | 100 x 150 | 260 x 200 | 320 x 200 | 400 x 200 | 600 x 200 |
| Loading Chamber Size (L x H) mm | 150 x 150 | 260 x 280 | 320 x 280 | 400 x 280 | 600 x 280 |
| A C Electrical induction geared motor | 2 HP | 3 HP | 5 HP | 7.5 HP | 10 HP |
| Incoming Electrical Supply 3 Phase, 440 VAC, 50 Hz | 10 Amp | 10 Amp | 15 Amp | 20 Amp | 25 Amp |
| Overall dimension of machine in mm (L x W x H approx) | 1050 x 500 x 1250 | 1350 x 600 x 1450 | 1450 x 600 x 1450 | 1650 x 600 x 1450 | 1950 x 650 x 1450 |
| Gross weight of machine in Kgs | 180 | 330 | 380 | 430 | 650 |
